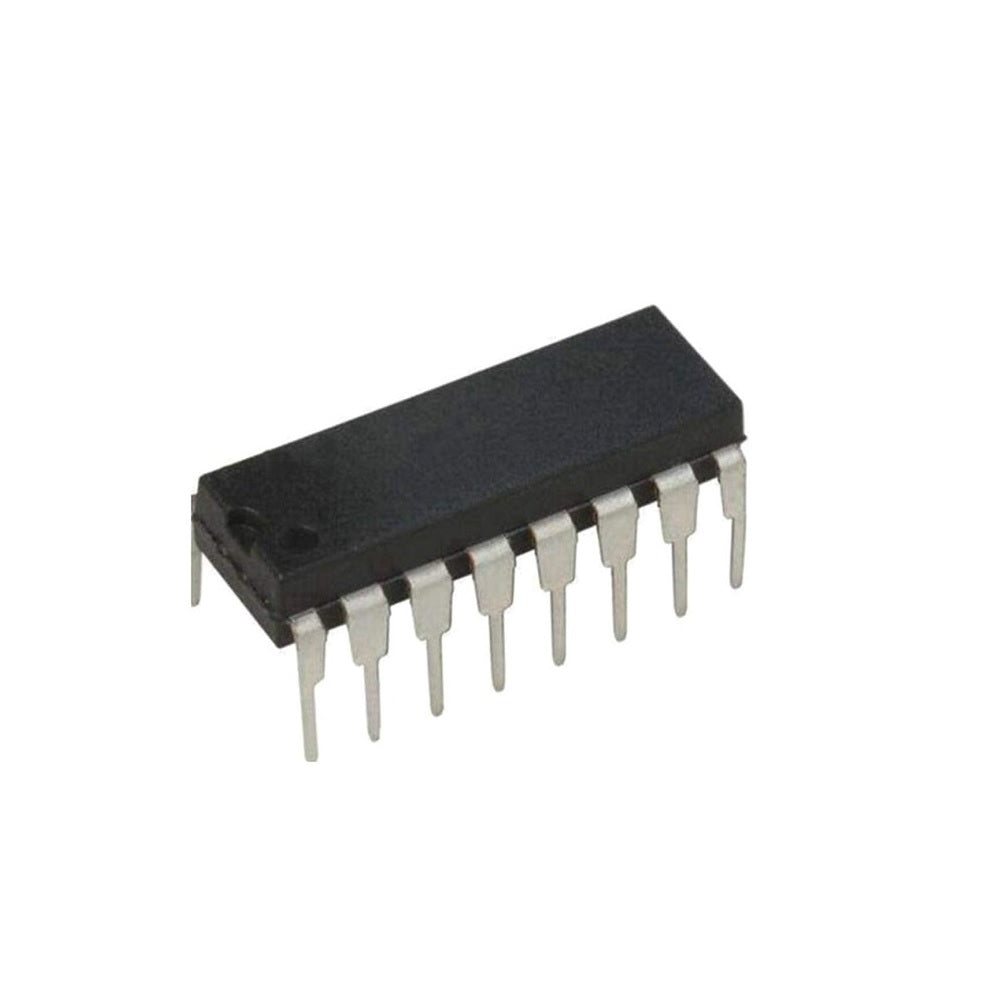

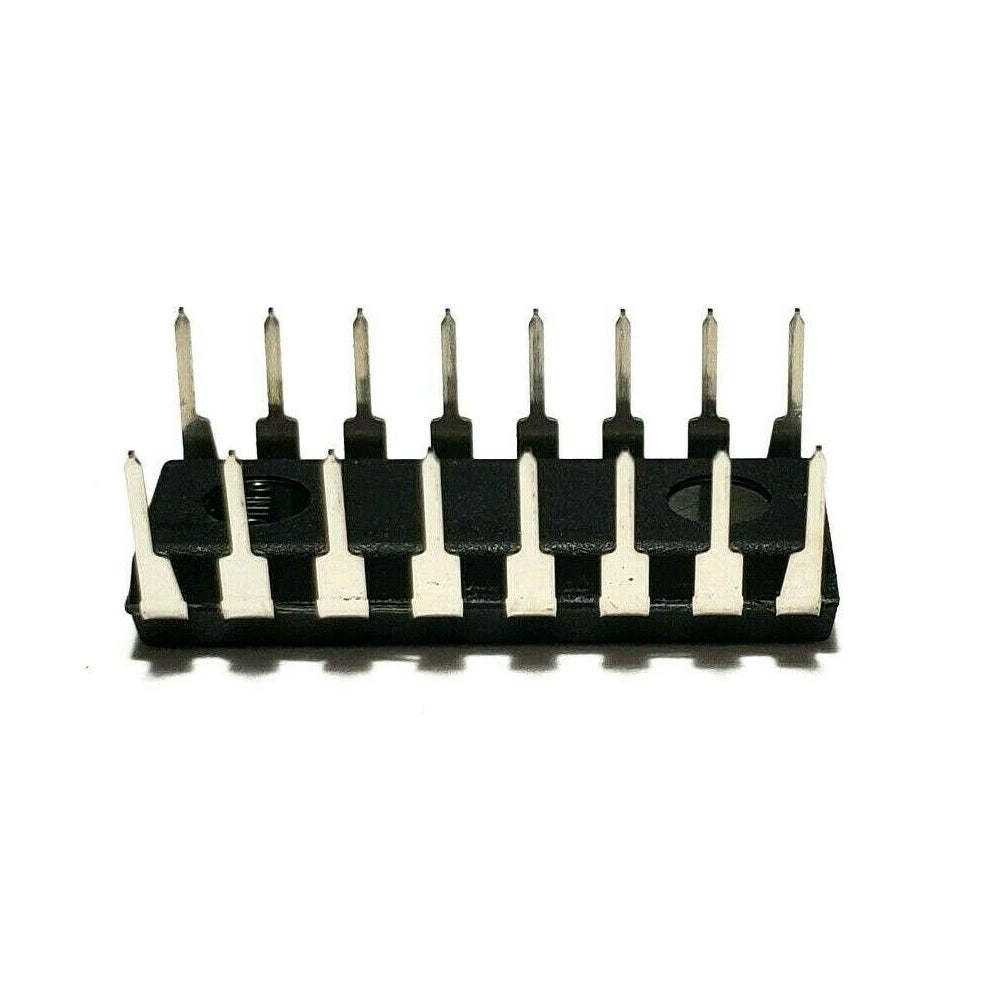

CD4532 8-Input Priority Encoder IC DIP-16 Package

CD4532BMS consists of combinational logic that encodes the highest priority input (D7 – D0) to a 3-bit binary code.

Technical Specification:

• VCC: 3 to 18 V
• Channels (#):1
• Voltage (Nom) (V): 5, 10, 15V
• F @ nom voltage (Max) (MHz):8
• ICC @ nom voltage (Max) (mA):0.3
• tpd @ nom Voltage (Max) (ns):110
• IOL (Max) (mA):1.5
• IOH (Max) (mA):-1.5
• Operating temperature range (C): -55°C to 125°C
• Configuration: 08:04
• Bits (#):8
• Digital input leakage (Max (uA):5

Features:

• Encodes the Highest Priority Input to a 3-bit Binary Code
• Cascading to Handle any Number of Inputs
• Group Select Indicates One or More Priority Inputs
• Wide Operating Voltage Range
• Low Power CMOS

Applications:

• Can be used for navigational purposes
