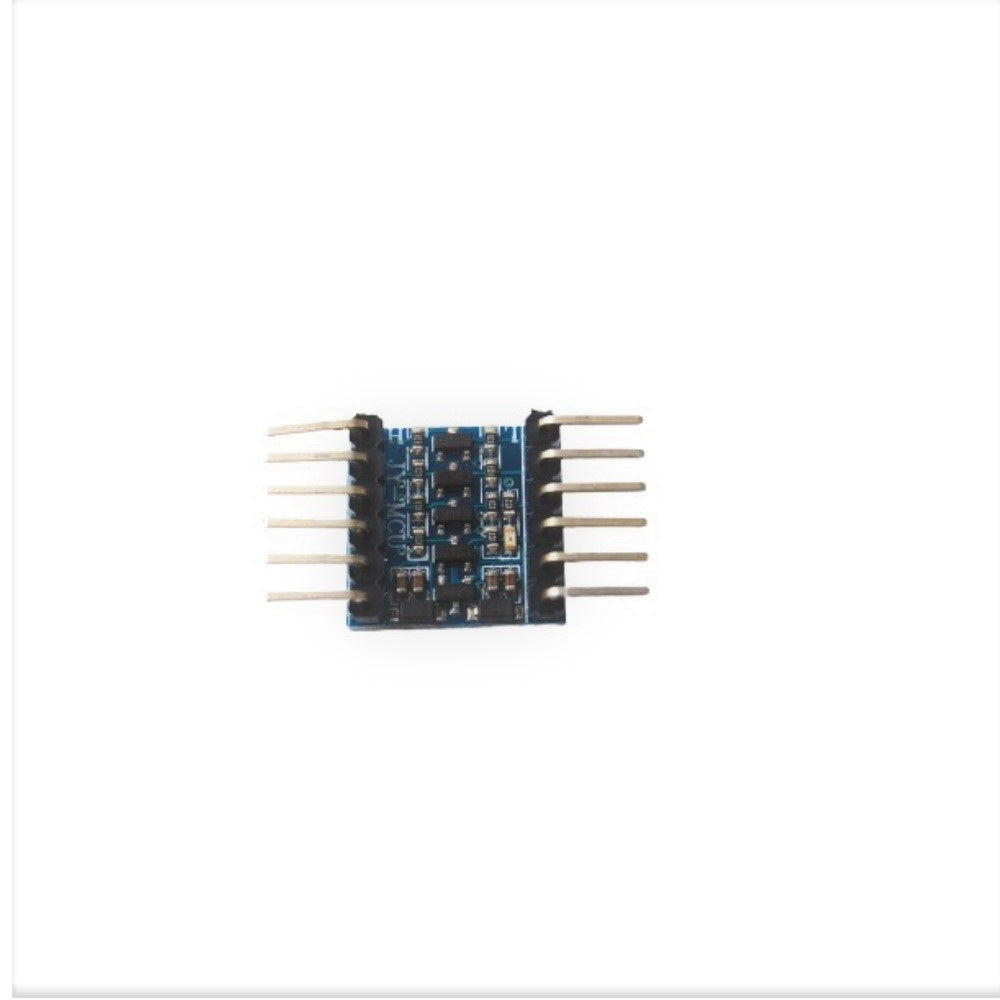

I2C 4 Channel 3.3V to 5V Bi-Directional Logic Level Converter

SKU: VM00190

Price:
Sale price Rs. 50.85 (excl.18% GST)
Rs. 60.00

Description

I2C Bi-Directional Logic Level Converter- 4 Channel circuit convert signals as low as 1.8 V to as high as 5 V and vice versa, and its four channels are enough to support most common bidirectional and unidirectional digital interfaces, including I²C, SPI, and asynchronous TTL serial.

If you've ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. The bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side.

Technical Specification:

  • Power: 2.8V – 6V
  • The voltage on Lx Side: 1.8V-5V
  • The voltage on Hx Side: 2.8V-6V
  • Size: 16mm*13mm*3mm (L*W*H)

Features:

  • Logic level shifter Bi-Directional with 4 channels between high logic voltage and low logic voltage
  • Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side
  • This 4 channels bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V and steps up 3.3V to 5V at the same time
  • Compatible with breadboard, can be directly use in breadboard

Applications:

  • UART interfaces
  • 1-wire interface
  • I2C and SPI interface
  • Atmel ICSP interface
