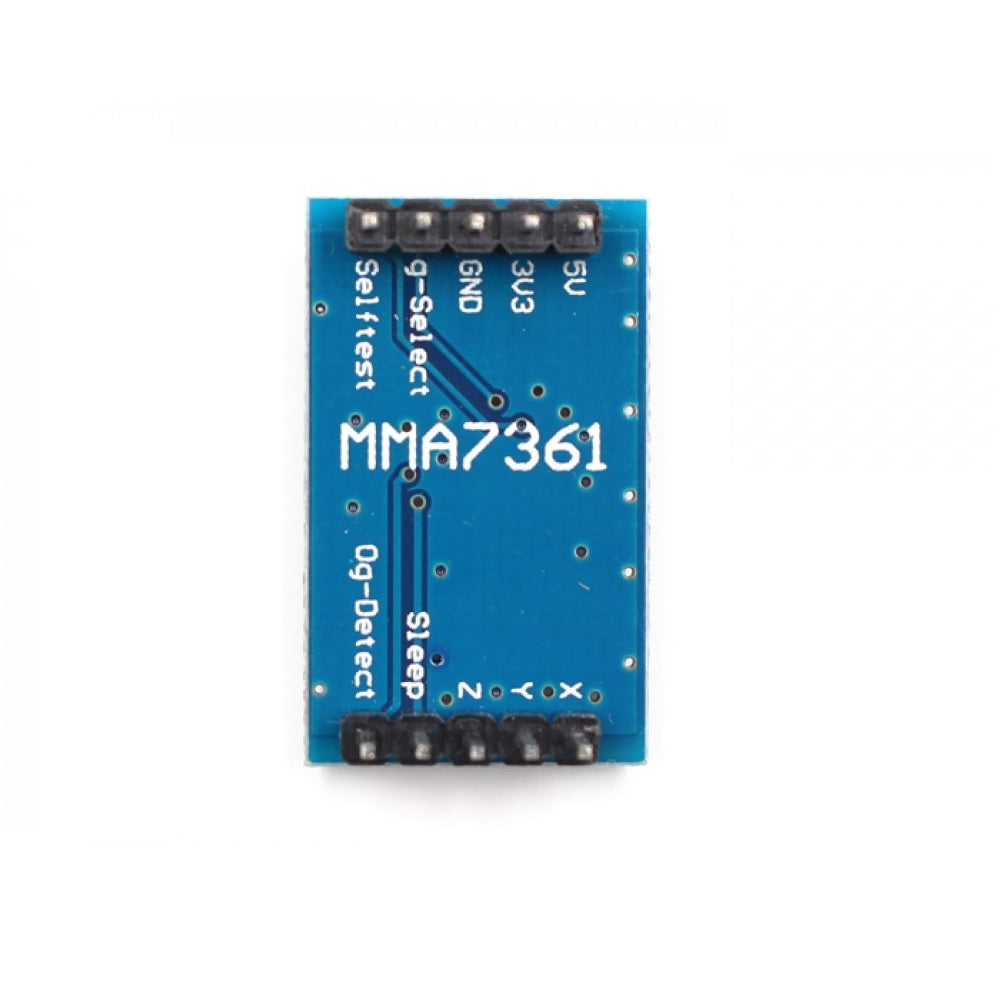

MMA7361 Angle Acceleration Sensor Module

SKU: VM00028

Send Inquiry

Description

The MMA7361LC is a low power, low profile capacitive micro machined accelerometer featuring signal conditioning, a 1-pole low pass filter, temperature compensation, self-test, 0g-Detect which detects linear free-fall, and g-Select which allows for the selection between 2 sensitivities. Zero-g offset and sensitivity are factory set and require no external devices.

 The MMA7361LC includes a Sleep Mode that makes it ideal for handheld battery powered electronics. This module can be used for signal disposal, unipolar low-pass filter and temperature compensation technology because it uses low-cost micro capacitive.

 Technical Specification:

  • 3mm x 5mm x 1.0mm LGA-14 Package
  • Low Current Consumption: 400 μA
  • Sleep Mode: 3 μA
  • Low Voltage Operation: 2.2 V – 3.6 V
  • High Sensitivity (800 mV/g @ 1.5g)
  • Selectable Sensitivity (±1.5g, ±6g)
  • Working Voltage : +3.3V and 5V
  • Size : 22mm * 15mm * 9mm
  • Weight : 2g

Features:

  • Fast Turn On Time (0.5 ms Enable Response Time)
  • Self-Test for Free-fall Detect Diagnosis
  • 0g-Detect for Free-fall Protection
  • Signal Conditioning with Low Pass Filter
  • Robust Design, High Shocks Survivability
  • RoHS Compliant
  • Environmentally Preferred Product
  • Low Cost

Applications:

  • 3D Gaming: Tilt and Motion Sensing, Event Recorder
  • HDD MP3 Player: Free-fall Detection
  • Laptop PC: Free-fall Detection, Anti-Theft
  • Cell Phone: Image Stability, Text Scroll, Motion Dialling, E-Compass
  • Pedometer: Motion Sensing
  • PDA: Text Scroll
  • Navigation and Dead Reckoning: E-Compass Tilt Compensation
  • Robotics: Motion Sensing
