Description

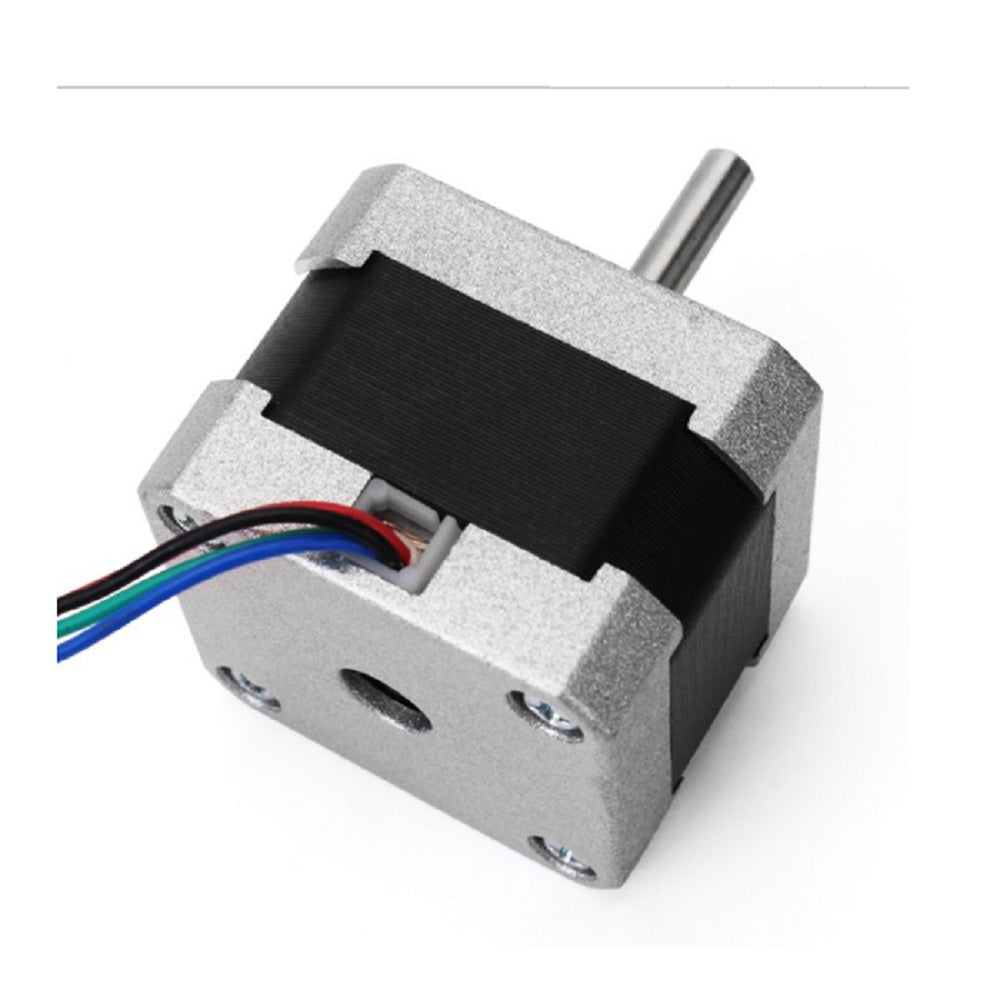

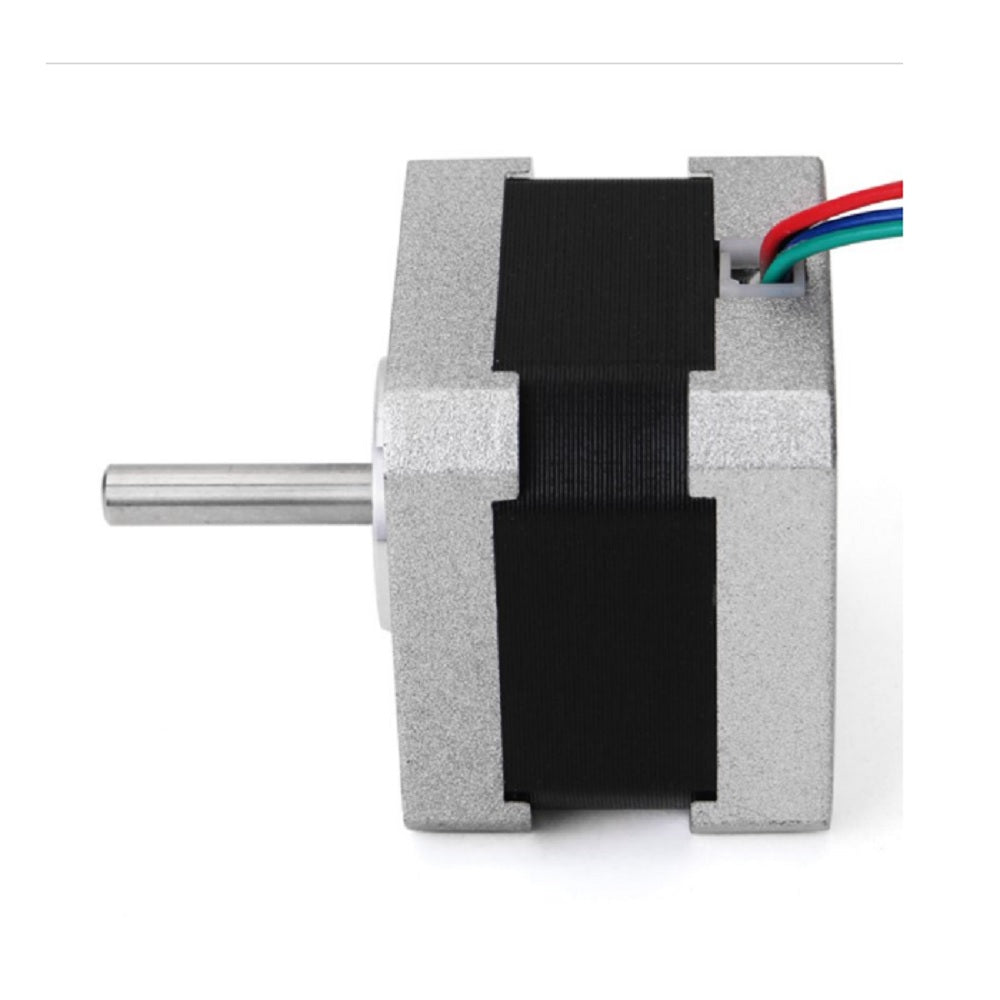

NEMA17 Stepper Motor - 34mm
The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA17 2.6 kg-cm Stepper Motor can provide 2.6 kg-cm of torque at 0.4A current per phase.
The motor’s position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The NEMA17 2.6 kg-cm Stepper Motor provides excellent response to starting, stopping and reversing pulses from the stepper motor driver.
They are very useful in various applications, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.
It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.
The motor’s shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip.
Specification
The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA17 2.6 kg-cm Stepper Motor can provide 2.6 kg-cm of torque at 0.4A current per phase.
The motor’s position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The NEMA17 2.6 kg-cm Stepper Motor provides excellent response to starting, stopping and reversing pulses from the stepper motor driver.
They are very useful in various applications, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.
It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.
The motor’s shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip.
Specification
- Holding Torque 2.6 kg-cm.
- Step Angle 1. 8 deg/step
- Current/Phase 0.4A
- Rated Voltage 12 VDC
- Number of Phase 2
- Shaft Type Round
- Shaft Diameter 5mm
- Shaft Length 22mm
- Motor Dimension (LxWxH) 42x42x36 (mm)
- Weight 230 gm.
