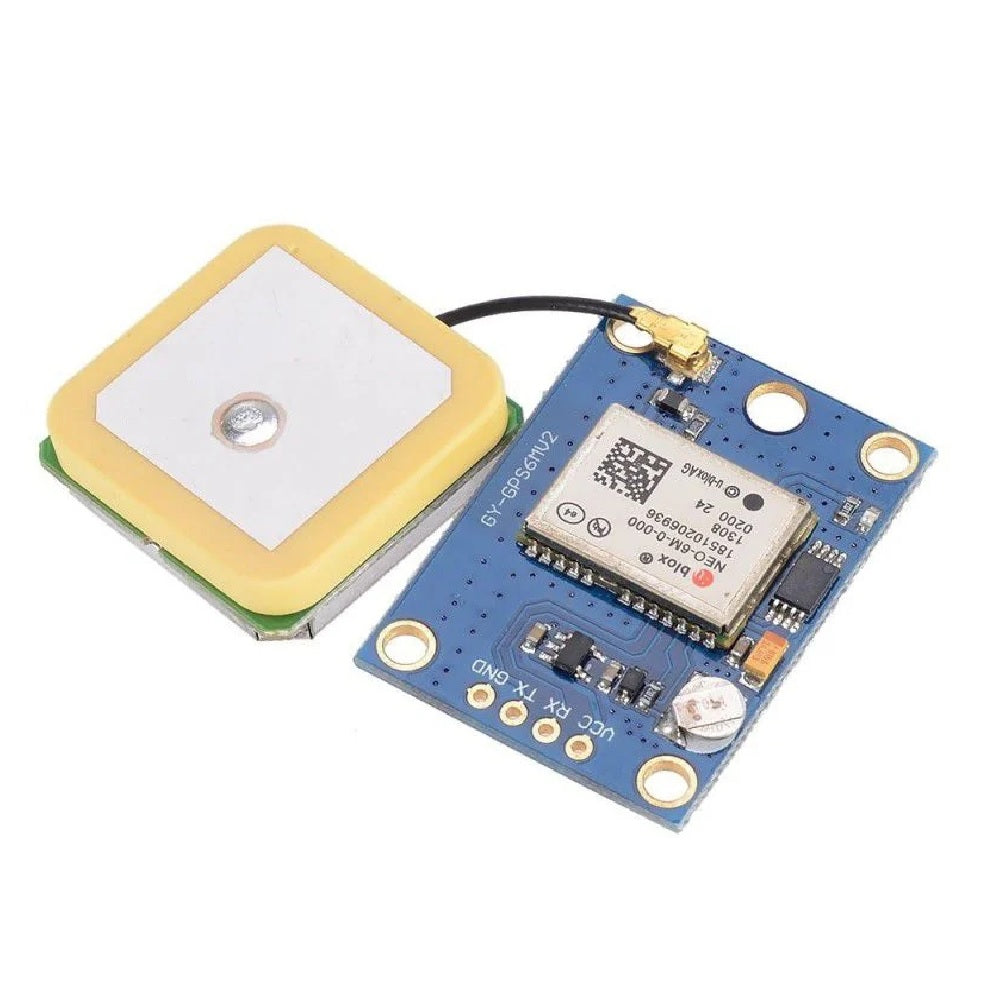

NEO-6M GPS Module

SKU: VM00406

Price:
Sale price Rs. 254.24 (excl.18% GST)
Rs. 300.00

Description

The NEO-6MV2 is a GPS (Global Positioning System) module and is used for navigation. The module simply checks its location on earth and provides output data which is longitude and latitude of its position. It is from a family of stand-alone GPS receivers featuring the high performance u-blox 6 positioning engine. These flexible and cost effective receivers offer numerous connectivity options in a miniature (16 x 12.2 x 2.4 mm) package. The compact architecture, power and memory options make NEO-6 modules ideal for battery operated mobile devices with very strict cost and space constraints. Its Innovative design gives NEO-6MV2 excellent navigation performance even in the most challenging environments.

Technical Specification:

  • Maximum navigation update rate: 5Hz
  • Receiver type: 50 Channels - GPS L1 frequency  - SBAS (WAAS, EGNOS, MSAS, GAGAN)
  • Time-To-First-fix:  For Cold Start 32s, For Warm Start 23s, For Hot Start <1s
  • Default baud rate: 9600bps
  • EEPROM with battery backup
  • Sensitivity:  -160dBm
  • Supply voltage: 3.6V
  • Maximum DC current at any output: 10mA
  • Operation limits: Gravity-4g, Altitude-50000m, Velocity-500m/s
  • Operating temperature range: -40ºC TO 85°C

Features:

  • Standalone GPS receiver
  • Anti-jamming technology
  • UART Interface at the output pins (Can use SPI ,I2C and USB by soldering pins to the chip core)
  • Under 1 second time-to-first-fix for hot and aided starts
  • Location data provided by it is accurate

Applications:

  • GPS application
  • Smart phone and tablets
  • Navigation systems
  • Drones
  • Hobby projects
